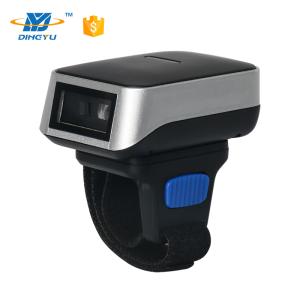

Smallest Mini Finger Wearable Ring Wireless Barcode Scanner
DI9010-2D is a high-performance 2Dbluetoothbarcode scanner with leading COMS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
| Physical parameter | ||
| Light Source | lighting: white LED(Automatically adjust brightness according to distance) Aiming; Green LED,wavelength coverage 525nm | |
| CMOS | 640×480 CMOS | |
| CUP | ARM32-bit | |
| startup time | 750ms | |
| Resolution | 1D:≥3mil,2D:≥8.7mil @PCS90% | |
| Depth of field | 3mil:55~100mm,13mil:55~350mm | |
| Scan mode | Trigger mode,Auto sense mode | |
| prompting mode | LED indicating lamp,buzzer | |
| Reading angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) | |
| visual angle | Horizontal 40°× Vertical 30° | |
| Motion tolerance | 25cm/s | |
| Print contrast | 25%PCS | |
| Ambient Light | 70000Lux | |
| Symbologies | 1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec | |
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
Q6: What are your strengths?
DYscan: We are a professional scanner manufacturer. The company is divided into different departments, each with its own director. The R&D department is responsible for the development of new products. The production department is responsible for the production and testing of products. The Marketing and Sales department consists of the sales team, and customer services.
Q7: Do I need to install drivers?
DYscan: No. Our scanners support plug and play. No drivers need to be installed. It can be used in Windows, Mac OS, IOS, Linux, UNIX, Android, etc.
